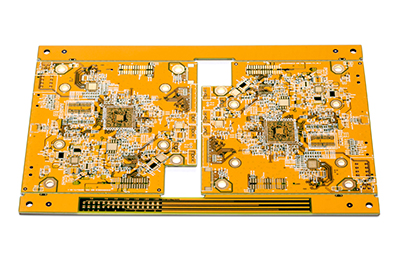

HOLDEN INDUSTRIAL offers services for the supply of custom-made printed circuit boards according to customer’s documentation. Our partners, whom we have been cooperating with for more than 10 years, manufacture all printed circuit boards. Their production facilities are located in China and Taiwan.
We supply printed circuit boards of various complexity and in any amount.
Specifications of printed circuit boards:
|Layer volume||1 – 28|
|Used materials||FR-2, FR-4, CEM-1, FR-4 High TG, PI, PTFE, PPO, Rogers, Taconic, etc.|
|Width of conductor||min 0.1mm|
|Track pitch||min 0.1mm|
|Interelement spacing of printed-circuit wiring||min 0.2mm|
|Diameter of the via||min 0.1mm|
|Standard thickness of copper foil||18um, 35um, 70um|
|Coating||HASL, immersion gold plating, gold plating, immersion stannum, laminas’ gold plating|
|Solder mask||Liquid photoimageable solder mask of any colors (green, blue, red, yellow, black, etc.)|
|Printed circuit board processing by contour||milling, scribing, matched metal mold|
|Possible FR4 material thickness, mm||0.3 / 0.5 / 0.8 / 1.0 / 1.5 / 1.6 / 2.0|
|Maximum size of half-finished product||600 x 600 mm|
